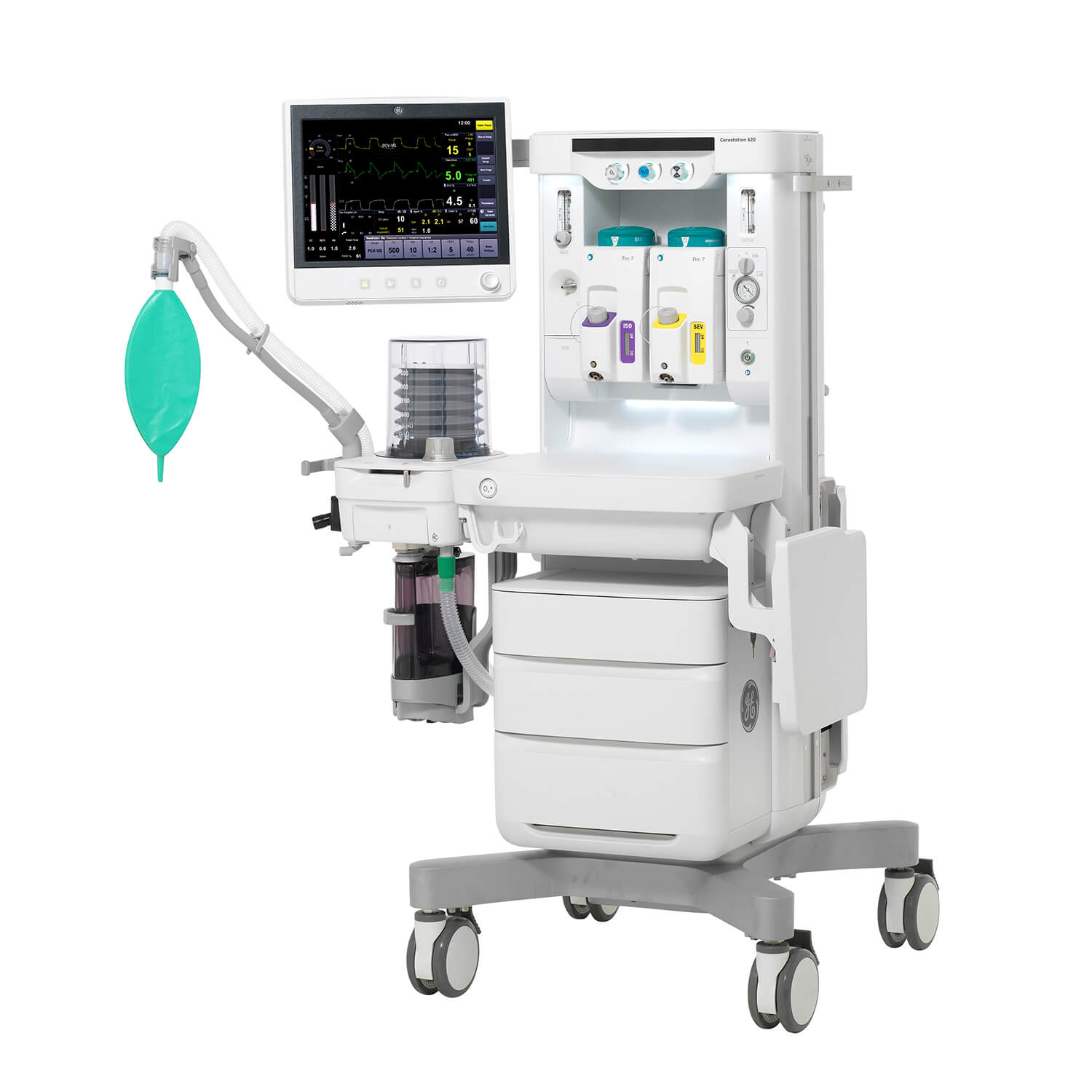

GE Carestation 620 Anesthesia Machine

The Carestation 620 Anesthesia Machine is one of the newest additions to the GE anesthesia range. Its sleek compact design makes it ideal for operating rooms. The Carestation was designed specifically for low-flow anesthesia delivery and fast wash-in/wash-out requirements. Making it easy to ensure a quick patient response to changes in fresh gas or anesthetic agents.

The 620 comes with a 15 inch touchscreen display that features intuitive CARESCAPE inspired interface. Including a Bi-level work surface that offers illumination and intelligent flow control lights to clearly indicate active flow controls when in use.

• Elegant modern design in a slim, compact frame well suited for constrained environments
• Simple and easy to use 15” touchscreen ventilator display
• Intuitive CARESCAPE™ inspired user interface for the unified Carestation user experience
• Integrated CARESCAPE Respiratory Module
• Time saving tools to help streamline clinician workload
• Scalable software and hardware features: “build your own” Carestation
• ecoFLOW display option may help clinicians mitigate therisk of hypoxic mixtures while helping to reduce agent use by using low and minimum flows with continuous gas monitoring

Features & Specifications

Dimensions
Height: 135 cm / 53.1 in
Width: 82.5 cm / 32.4 in
Depth: 75 cm / 29.5 in
Weight: 145 kg / 320 lb

Top Shelf
Weight limit: 25 kg / 55 lb
Width: 41.3 cm / 16.3 in
Depth: 27.0 cm / 10.6 in

Work Surface
Height: 83.6 cm / 32.9 in
Size: 1930 cm2 / 299 in2
Size: 2950 cm2 / 471 in2
(with optional flip shelf)

Upper left Datex-Ohmeda (DO) dovetail

Dovetail length: 54 cm/21.3 in

Lower left Datex-Ohmeda (DO) dovetail

Dovetail length: 28 cm/11.0 in

Right Datex-Ohmeda (DO) dovetail

Dovetail length: 96.4 cm/38.0 in

Drawers (internal dimensions)

Height:
Top and middle: 8.6 cm/3.4 in
Bottom: 13.3 cm/5.2 in
Width: 34 cm/13 in
Depth: 37 cm/14.6 in
Manual ventilation bag arm (optional)
Arm length: 39.8 cm/15.7 in
Bag arm height (adjustable): 53 cm/20.9 in; 136 cm/53.5 in

Casters
Diameter: 12.5 cm/4.9 in
Brakes: Central Brake Warranty:

For new products, please refer to the manufacturer’s website for details.
This product has been refurbished and tested to the highest quality standards by The PCB Medical. This Limited Warranty offered by PCB Medical covers defects in material or workmanship. This warranty extends to the original purchaser only and is nontransferable. The warranty begins the day the equipment is received. Please inspect your item(s) upon delivery. Any unauthorized service providers working on our equipment within the warranty period will void the warranty!
Our warranty periods are very based on product, a standard 30 day parts warranty is included with all refurbished parts unless stated otherwise on the quote/Invoice. Warranties begin from the documented date of receipt.
Our warranties do not cover any problem that is caused by: A. Conditions, malfunctions or damage not resulting from defects in material or workmanship. B. Conditions, malfunctions or damage resulting from (1) normal wear and tear, improper installation, improper maintenance, misuse, abuse, negligence, accident or alteration.
Our limited warranties are void if a product is returned with removed, damaged or tampered labels or any alterations (including removal of any component or external cover).
PCB Medical will not provide any warranty coverage unless claims are made in compliance with all terms of the controlling warranty statement included with your product and you follow proper return procedure. To request warranty service, you will need to provide: 1. The invoice or other evidence of the date and place of purchase. 2. A description of the problem. 3. Contact our Customer Service Department to receive a Return Authorization Number (RMA#)
