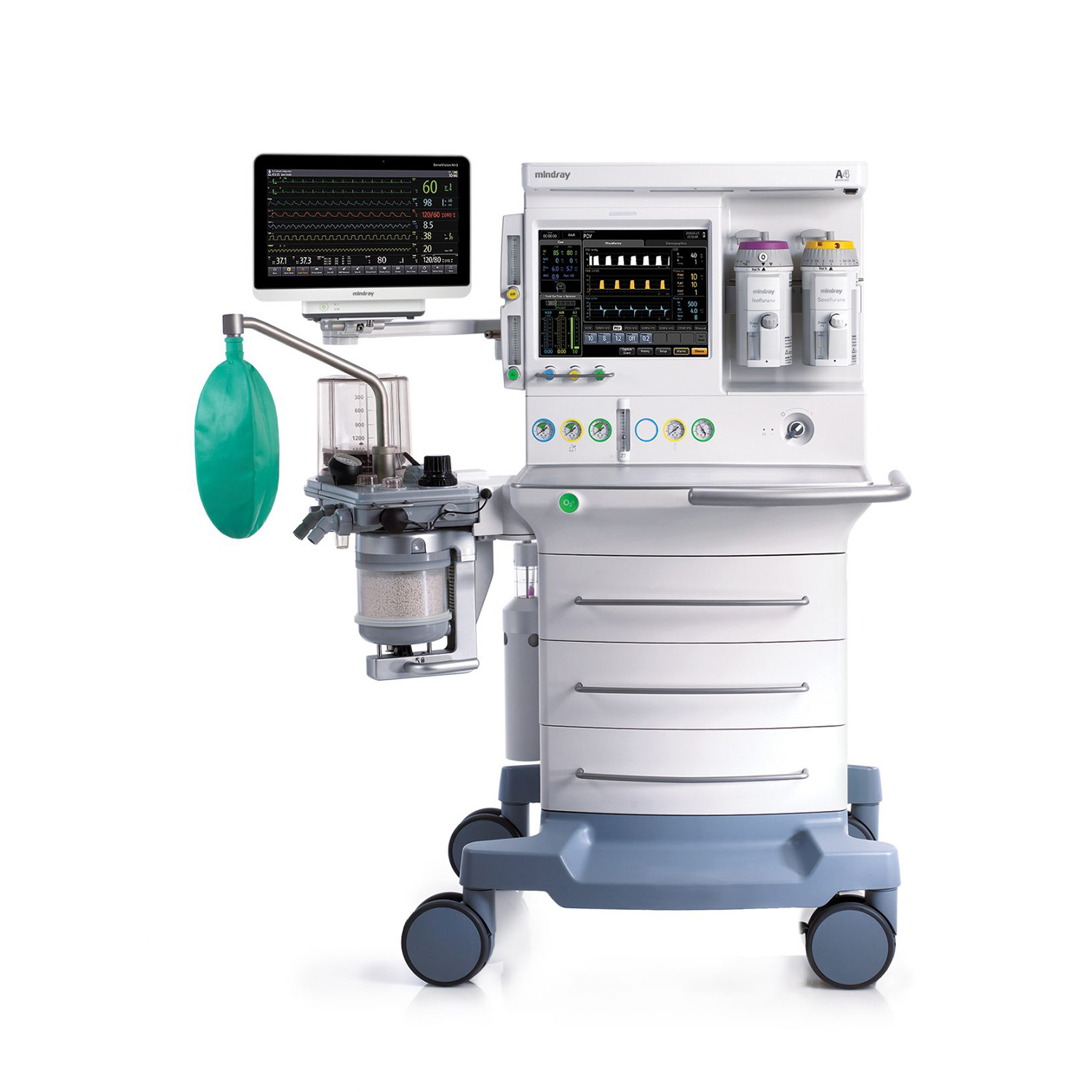

Mindray A4 Anesthesia Machine

The Mindray A4 is a flexible anesthesia machine that comes with an intuitive user interface with a bright touchscreen display, simplifying changes by eliminating deep menus, control knobs and dedicated buttons. The A4 comes with ample storage and workspace, with additional mounting options for accessories. The anesthesia machine comes with the standard HL7 which connects the anesthesia system to the patients medical records at the facility. The anesthesia machines flexibility and adaptive design allow customization of ventilation for mid-acuity hospitals and ambulatory surgery centers.

• 15″ color touchscreen with digital flow meters and customizable settings
• Manual/Spontaneous breathing mode with respiratory monitoring
• Volume Control Ventilation (VCV)
• Pressure Support Ventilation with CPAP/PS
• Warmed breathing system virtually eliminates internal condensation
• Automatic compliance with fresh gas compensation
• Economical single container absorber
• Auxiliary O2 /Air flow meters deliver blended gas to reduce the risk of airway fire
• Able to deliver O2 /N2O/Air and agent in manual backup mode
• LED lighting with adjustable brightness
• HL7 connectivity for AIMS and EMR integration
• Easy to move with robust wheels and individual wheel brakes
• Compatible with Mindray patient monitors

Features & Specifications

Dimensions

Height:	140 cm (55.1 in)
Width:	105 cm (41.3 in)
Depth:	80.5 cm (31.7 in)
Weight:	(without vaporizers and gas cylinders) 160 kg (353 lbs)

Top Shelf

Weight Limit:	40 kg (88 lbs)
Width:	61.6 cm (24.2 in)
Depth:	36.2 cm (14.2 in)

Work Surface

Width:	61.6 cm (24.2 in)
Depth:	38 cm (15 in)
Height:	85 cm (33.4 in)

Drawers (3 same size)

Height:	13.5 cm (5.3 in)
Width:	44 cm (17.3 in)
Depth:	38.5 cm (15.1 in)

Casters (Dual Wheel)

Diameter:	15 cm (6 in)
Cable/Hose Guards:	Built-in
Central Brake:	Controls all 4 casters

Mounting Rails

GCX Compatible 5 rails total

Dimensions

Height 140 cm (55.1 in)
Width 105 cm (41.3 in)
Depth 80.5 cm (31.7 in)

Weight (without vaporizers and gas cylinders)
150 kg (331 lbs)

Top Shelf
Weight Limit 40 kg (88 lbs)
Width 61.6 cm (24.2 in)
Depth 36.2 cm (14.2 in)

Work Surface
Width 61.6 cm (24.2 in)
Depth 38 cm (15 in)
Height 85 cm (33.4 in)

Drawers (3 same size)
Height 13.5 cm (5.3 in)
Width 44 cm (17.3 in)
Depth 38.5 cm (15.1 in)

Casters (Dual Wheel)

Diameter 15 cm (6 in)
Cable/Hose Guards Built-in
Central Brake Controls all 4 casters

Mounting Rails
GCX Compatible 5 rails total Warranty:
