ICU Ventilator · ICV Series · Intensive Care

PCB-ICV1000

Full-featured ICU ventilator built for demanding critical care environments — invasive & non-invasive support, 9 ventilation modes, and Li-ion battery for over 3 hours of operation.

View specifications
ICU / Critical CareAdult & PediatricBattery BackupTouch Screen

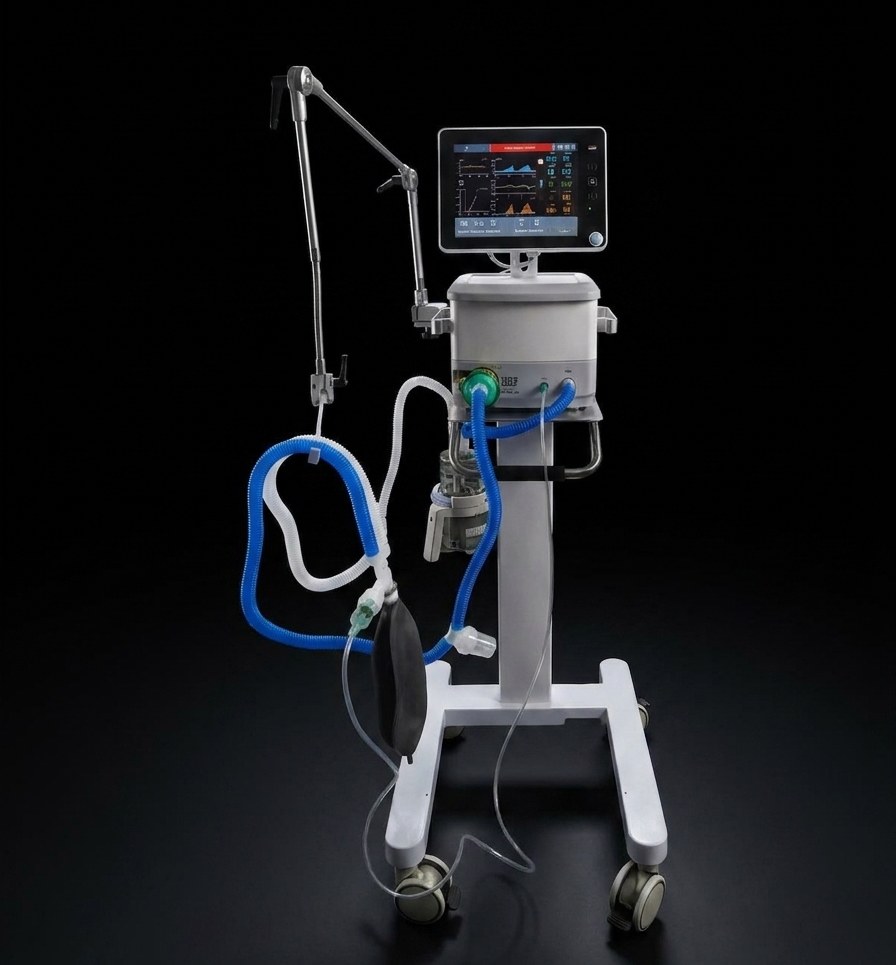

PCB-ICV1000 ICU Ventilator
About the PCB-ICV1000

Engineered for critical care.

The PCB-ICV1000 is a full-featured ICU ventilator engineered for demanding critical care environments. Designed to support both invasive and non-invasive ventilation, it delivers advanced respiratory management with precision and reliability.

Equipped with a 12.1” touchscreen interface, the system provides intuitive control and real-time monitoring through six waveform displays, enabling faster and more informed clinical decisions. With 9 ventilation modes, it adapts seamlessly to a wide range of patient needs across intensive care settings.

Built for continuity, the integrated Li-ion battery ensures over 3 hours of operation, maintaining performance during power interruptions or patient transport.

Reliable, versatile, and ready for critical care — the PCB-ICV1000 is designed to perform when it matters most.

9 modesVentilation
12.1″Touch screen
3+ hrsBattery backup
120 L/minMax flow
About the PCB-ICV1000

Engineered for critical care.

The PCB-ICV1000 is a full-featured ICU ventilator engineered for demanding critical care environments. Designed to support both invasive and non-invasive ventilation, it delivers advanced respiratory management with precision and reliability.

Equipped with a 12.1” touchscreen interface, the system provides intuitive control and real-time monitoring through six waveform displays, enabling faster and more informed clinical decisions. With 9 ventilation modes, it adapts seamlessly to a wide range of patient needs across intensive care settings.

Built for continuity, the integrated Li-ion battery ensures over 3 hours of operation, maintaining performance during power interruptions or patient transport.

Reliable, versatile, and ready for critical care — the PCB-ICV1000 is designed to perform when it matters most.

Overview

Comprehensive ventilation for critical care.

The PCB-ICV1000 is a full-featured ICU ventilator built for critical care environments. Comprehensive ventilation modes for both invasive and non-invasive support, six real-time waveform displays for clinical decision-making, and a Li-ion battery that keeps the unit running through power interruptions or patient transport.

Configuration · Function · Specifications

Built for demanding ICU environments.

Full-featured ICU ventilator with multiple ventilation modes, real-time waveform monitoring, intuitive 12.1″ touchscreen and Li-ion battery backup for uninterrupted critical care.

Display

12.1″ TFT touchscreen interface for intuitive control and clear monitoring.

Drive Gas

O2 and air
Inlet pressure: 280–600 kPa
Max flow: 120 L/min

PEEP & Battery

Inner electric PEEP
Li-ion battery — over 3 hours of operation

Ventilation Modes

VCV · PCV · SIMV-VCV · SIMV-PCV · CAPA/PSV · APRV · BIPAP · PRVC (PCV-VG)* · SIMV-PRVC (SIMV-PCV-VG)* · NIV* · VS* · Apnea back-up ventilation (VCV, PCV)

* Optional

Waveform Display

P–T · F–T · V–T · P–V Loop · P–F Loop · F–V Loop

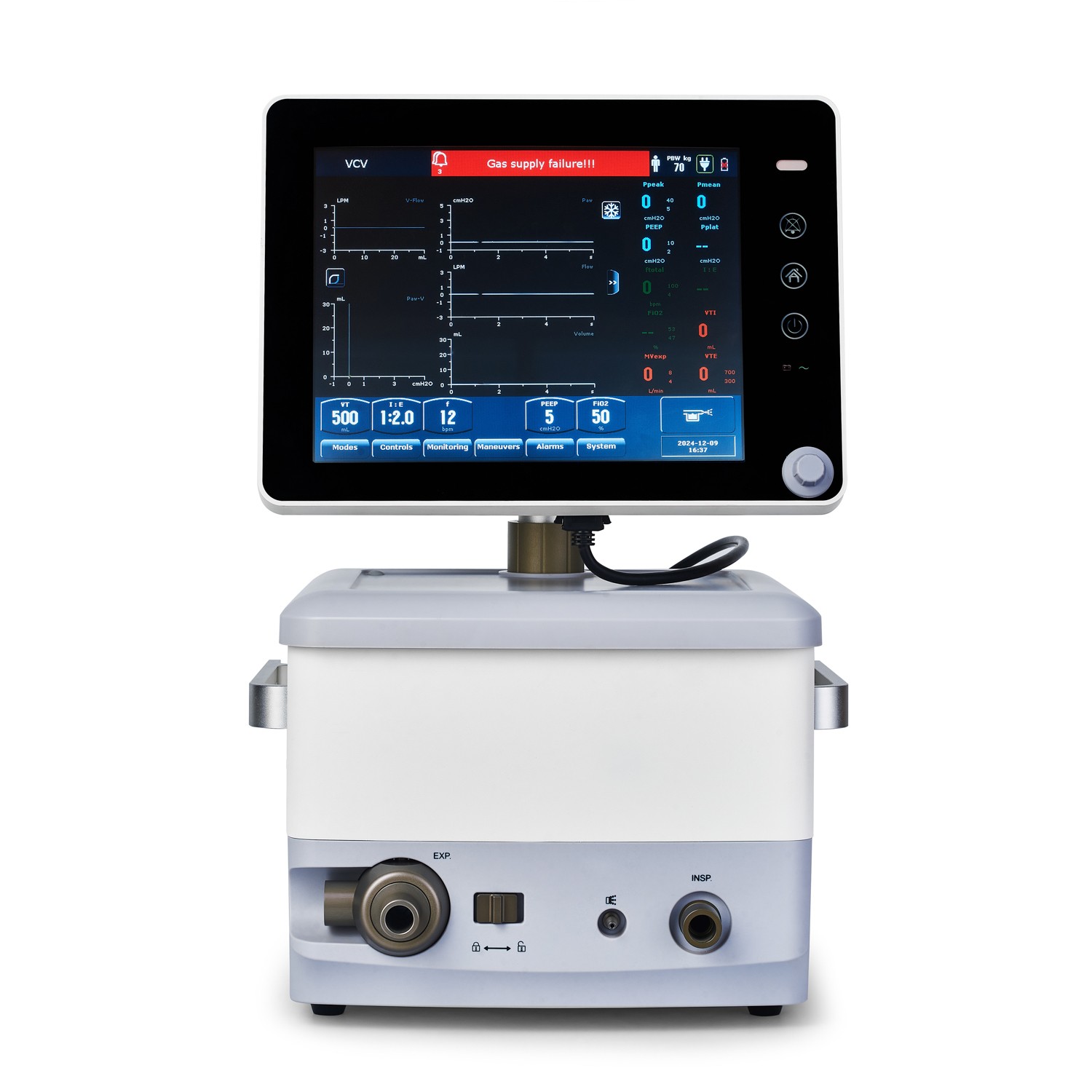

PCB-ICV1000 12.1 inch TFT touch screen
12.1″ TFT display

High-visibility clinical interface

Large touch screen with real-time waveforms, loop displays, and on-screen parameter alarms — designed for fast clinical decisions in critical care environments.

  • Real-time waveforms: P-T, F-T, V-T
  • Loop displays: PV, PF, FV
  • On-screen parameter alarms with audible alerts
  • Easy mode switching via touch
Ventilation Parameters
  • Tidal Volume: 50–1500 mL (optional 20–1500 mL)
  • Inspiration Pressure: 5–80 cmH2O
  • Pressure Support: 0–80 cmH2O
  • Respiratory Rate: 1–120 bpm
  • Inspiratory Time: 0.1–12.0 s
  • Respiratory Ratio: 4:1 to 1:10
  • PEEP: OFF, 3–50 cmH2O
  • FiO2: 21–100%
  • Flow Trigger: 0.5–20 L/min with base flow
  • Pressure Trigger: 0–20 cmH2O
Monitoring & Display
  • Flow & Volume: TVi, TVe, MV, MVspont
  • Breath Rate: Total & Spontaneous
  • Pressure: Ppeak, Pmean, Pplat, PEEP, Pmin
  • I:E Ratio
  • Respiratory Mechanics: P–V, F–V, P–F Loop
  • FiO2: 21–100%
  • Waveforms: P–T, F–T, V–T
  • SpO2*: SpO2, Pulse, PI
  • CO2*: EtCO2, FiCO2, CO2–T, Pleth
* Optional
Alarm Parameters
  • Respiratory Rate (high/low)
  • Minute Volume (high/low)
  • Pressure (high/low)
  • Tidal Volume (high/low)
  • SpO2 (high/low)
  • Apnea Time (0–60 s)
  • FiO2 (high/low)
  • Gas Source Failure
  • Battery Discharged / Low
  • Circuit Occlusion
  • O2 Supply Down
  • Air Supply Down
  • Mains Failure

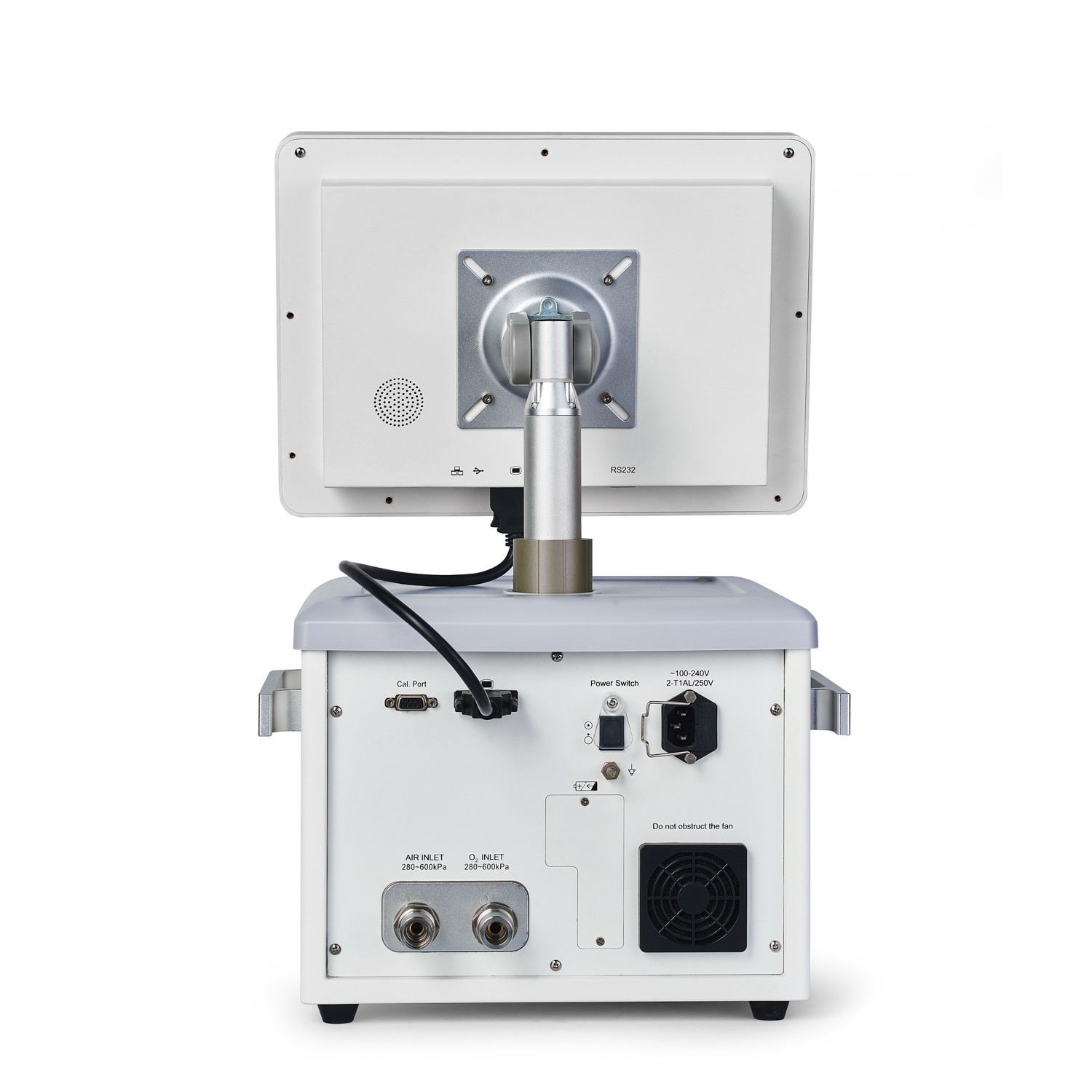

PCB-ICV1000 connections back panel
Robust connectivity

Hospital-grade I/O and gas connections

Back panel provides standard O₂ and air inlets, exhaust port, and integrated power filtering. Built to operate continuously in ICU environments.

  • Drive gas: O₂ + air, 280–600 kPa
  • Universal AC power: 100–240 V, 50/60 Hz
  • Standard ventilator circuit fittings
Why ICV1000

Built for critical care.

⚙️

9 ventilation modes

VCV, PCV, SIMV-VCV, SIMV-PCV, CAPA/PSV, APRV, BIPAP, PRVC, NIV, plus apnea backup.

🔋

Li-ion battery

Built-in battery for 3+ hours of continuous operation during transport or power outages.

👶

Wide patient range

Tidal volume 50–1,500 ml (optional 20 ml). Adult and pediatric ventilation.

Used across critical care environments

ICUCritical CareAdult ventilationPediatric ventilationTransport ventilation
Technical data

Specifications

Complete technical data for the PCB-ICV1000 ICU ventilator.

ModelICV1000
Display12.1″ TFT touch screen
Ventilation modesVCV, PCV, SIMV-VCV, SIMV-PCV, CAPA/PSV, APRV, BIPAP, PRVC, NIV
WaveformsP-T, F-T, V-T + PV, PF, FV loops
PEEPInner electric PEEP
Tidal volume50–1,500 ml (opt. 20 ml)
Inspiration pressure5–80 cmH₂O
Pressure support0–80 cmH₂O
Respiratory rate1–120 bpm
Inspiratory time0.1–12.0 s
Drive gasO₂ + air, 280–600 kPa
Max flow120 L/min
BatteryLi-ion, >3 hours
Power100–240 V AC, 50/60 Hz
Certified quality

Manufactured under ISO 13485

ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.

✓ CE✓ ISO 9001✓ ISO 13485
📄

Product brochure

Complete PCB-ICV1000 datasheet in PDF, ready to print or send to your client.

Download brochure (PDF) ↓

PDF format · English · 4 pages
