Zoll E Series Defibrillator / Monitor

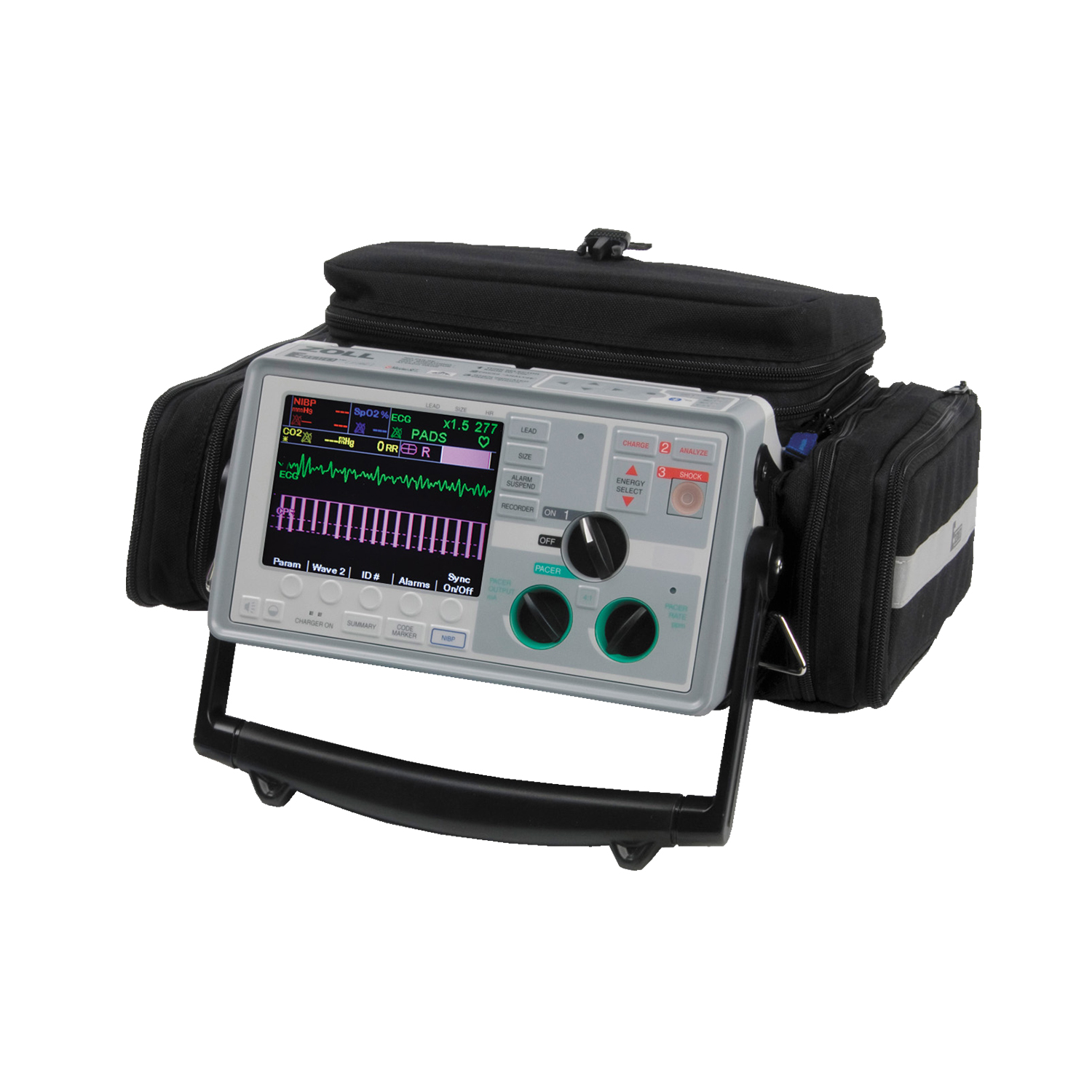

The Zoll E Series is a defibrillator/ monitor that can offer ECG and pacing as well. The small, compact design makes it an easily portable device used for transport or in EMS situations. The Zoll E Series offers Real CPR Help, where it can measure the chest compressions, rate, and depth in real-time while providing feedback if needed. All data for the defibrillator can easily be recovered and transferred to other devices through the RescueNed Code Software or a PCMCIA card. Additionally, the defibrillator monitor can offer measurements including; SpO2, NIBP, and EtCO2.

• Measures chest compressions and rate and depth in real time.
• Provides visual and optional audible CPR feedback using CPR-D padz.
• All CPR data can be recorded and reviewed using RescueNet Code Review software.
• EasyRead Tri-Mode display, screen for use in the dark or direct sunlight.

Features & Specifications

Defibrillator

Height:	5.75” (14.6 cm)
Width:	13.1” (33.3 cm)
Depth:	10.5” (26.7 cm)
Weight:	13.2 lbs (5.99 kg)

Pacemaker (Pacer version)

Type:	VVI demand; asynchronous (fixed rate) when used without ECG leads or in ASYNC pacing mode
Pulse Type:	Rectilinear, constant current
Pulse Shape and Duration:	Rectilinear, 40 milliseconds ±2 milliseconds
Pulse Amplitude:	Variable 0 mA to 140 mA ±5% or 5 mA, whichever is greater Digitally displayed on the monitor (increments or decrements by a value of 2 mA)
Pacing Rate:	Variable from 30 ppm to 180 ppm ±1.5% (increments or decrements by a value of 2 ppm)

Defibrillator

Waveform:	Rectilinear Biphasic
Energy Selection:	Adult Mode: Selectable at 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 85, 100, 120, 150, 200 J (Delivered into 50 Ω load). Selected using controls on sternum paddles or unit front panel.
Charge Time:	6-40 seconds depending on battery life and amount of joules selected.
Patient Impedance:	Min: 15 oms; Max: 250 ohms
Energy Display:	Monitor display indicates both selected and delivered energy

ECG Monitoring

Patient Connection:	3-lead ECG cable, 5-lead wire ECG cable, paddles, or MFE Pads. Selectable by front panel switch.
Input Protection:	Fully defibrillator-protected. A special circuit prevents distortion of ECG by pacer pulse. (Pacer version only).
Bandwidth:	0.67 Hz – 21 Hz (-3 dB) standard/0.05 Hz – 150 Hz Diagnostic 0.67 Hz – 27 Hz and 1 Hz – 21 Hz user-configurable
Lead Selection:	Displayed on monitor
ECG Size:	0.5, 1, 1.5, 2, 3 cm/mV (Centimeter per millivolt) display on monitor
Heart Rate:	Digital display; Range: 0 bpm – 300 bpm; Accuracy: ±5%

CPR Monitoring

Compression Depth:	0.75 to 3 inches ±0.25 inches 1.9 to 7.6 cm ±0.6 cm
Compression Rate:	50 to 150 compressions per minute

Display

Screen Type:	High resolution, color liquid crystal display (LCD)
Screen Size:	5.63 inches (14.3 cm) diagonally
Sweep Speed:	25 mm/s
Viewing Time:	4 seconds

Recorder

Paper:	80 mm thermal (grid width); 90 mm (paper width)
Speed:	25 mm/s or 50 mm/s (apparent), configurable for 12 lead output
Delay:	6 seconds
Annotations:	Time, date, defib energy, heat rate, pacer output (Pacer version only), QRS sync marker, ECG SIZE, lead, alarm, DEFIB TEST OK/FAIL, ANALYZE ECG, PADS OFF, ANALYSIS HALTED, NOISY ECG, SHOCK ADVISED, NO SHOCK ADVISED, ECG TOO LARGE, and diagnostic bandwidth.
Printing Method:	High resolution, thermal array print head
Print out Modes:	Manual or automatic; user-configurable
On/Off Control:	Front panel and paddle

PCMCIA Card

Capacity:	Standard Series II Flashcard – 2, 4, 16, or 32 Mb
Audio Recording:	Digital compressed audio data

Battery Packs

Lithium Ion	Weight: 1.5 lbs (0.68 kg) Voltage: 4.2 Volts per cell; 3 cells wired in series Recharge Time: 7 hours or less with integral charger
Rechargeable, Sealed Lead Acid	Weight: 2.2 lbs (1 kg) Voltage: 2 volts per cell; 5 cells wired in series Charge Time: 4 hours or less with integral charger

Defibrillator
Height: 5.75” (14.6 cm)
Width: 13.1” (33.3 cm)
Depth: 10.5” (26.7 cm)
Weight: 13.2 lbs (5.99 kg)

Pacemaker (Pacer version)
Type: VVI demand; asynchronous (fixed rate) when used without ECG leads or in ASYNC pacing mode
Pulse Type: Rectilinear, constant current
Pulse Shape and Duration: Rectilinear, 40 milliseconds ±2 milliseconds
Pulse Amplitude: Variable 0 mA to 140 mA ±5% or 5 mA, whichever is greater Digitally displayed on the monitor (increments or decrements by a value of 2 mA)
Pacing Rate: Variable from 30 ppm to 180 ppm ±1.5% (increments or decrements by a value of 2 ppm)

Defibrillator
Waveform: Rectilinear Biphasic
Energy Selection: Adult Mode: Selectable at 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 85, 100, 120, 150, 200 J (Delivered into 50 Ω load). Selected using controls on sternum paddles or unit front panel.
Charge Time: 6-40 seconds depending on battery life and amount of joules selected.
Patient Impedance: Min: 15 oms; Max: 250 ohms
Energy Display: Monitor display indicates both selected and delivered energy

ECG Monitoring
Patient Connection: 3-lead ECG cable, 5-lead wire ECG cable, paddles or MFE Pads. Selectable by front panel switch.
Input Protection: Fully defibrillator-protected. Special circuit prevents distortion of ECG by pacer pulse. (Pacer version only).
Bandwidth: 0.67 Hz – 21 Hz (-3 dB) standard/0.05 Hz – 150 Hz Diagnostic 0.67 Hz – 27 Hz and 1 Hz – 21 Hz user-configurable
Lead Selection: Displayed on monitor
ECG Size: 0.5, 1, 1.5, 2, 3 cm/mV (Centimeter per millivolt) display on monitor
Heart Rate: Digital display; Range: 0 bpm – 300 bpm; Accuracy: ±5%

CPR Monitoring
Compression Depth: 0.75 to 3 inches ±0.25 inches 1.9 to 7.6 cm ±0.6 cm
Compression Rate: 50 to 150 compressions per minute

Display
Screen Type: High resolution, color liquid crystal display (LCD)
Screen Size: 5.63 inches (14.3 cm) diagonally
Sweep Speed: 25 mm/s
Viewing Time: 4 seconds

Recorder
Paper: 80 mm thermal (grid width); 90 mm (paper width)
Speed: 25 mm/s or 50 mm/s (apparent), configurable for 12 lead output
Delay: 6 seconds
Annotations: Time, date, defib energy, heat rate, pacer output (Pacer version only), QRS sync marker, ECG SIZE, lead, alarm, DEFIB TEST OK/FAIL, ANALYZE ECG, PADS OFF, ANALYSIS HALTED, NOISY ECG, SHOCK ADVISED, NO SHOCK ADVISED, ECG TOO LARGE, and diagnostic bandwidth.
Printing Method: High resolution, thermal array print head
Print out Modes: Manual or automatic; user-configurable
On/Off Control: Front panel and paddle

PCMCIA Card
Capacity: Standard Series II Flash card – 2, 4, 16, or 32 Mb
Audio Recording: Digital compressed audio data

Battery Packs
Lithium Ion
Weight: 1.5 lbs (0.68 kg)
Voltage: 4.2 Volts per cell; 3 cells wired in series
Recharge Time: 7 hours or less with integral charger
Rechargeable, Sealed Lead Acid
Weight: 2.2 lbs (1 kg)
Voltage: 2 volts per cell; 5 cells wired in series
Charge Time: 4 hours or less witn integral charger Warranty:
