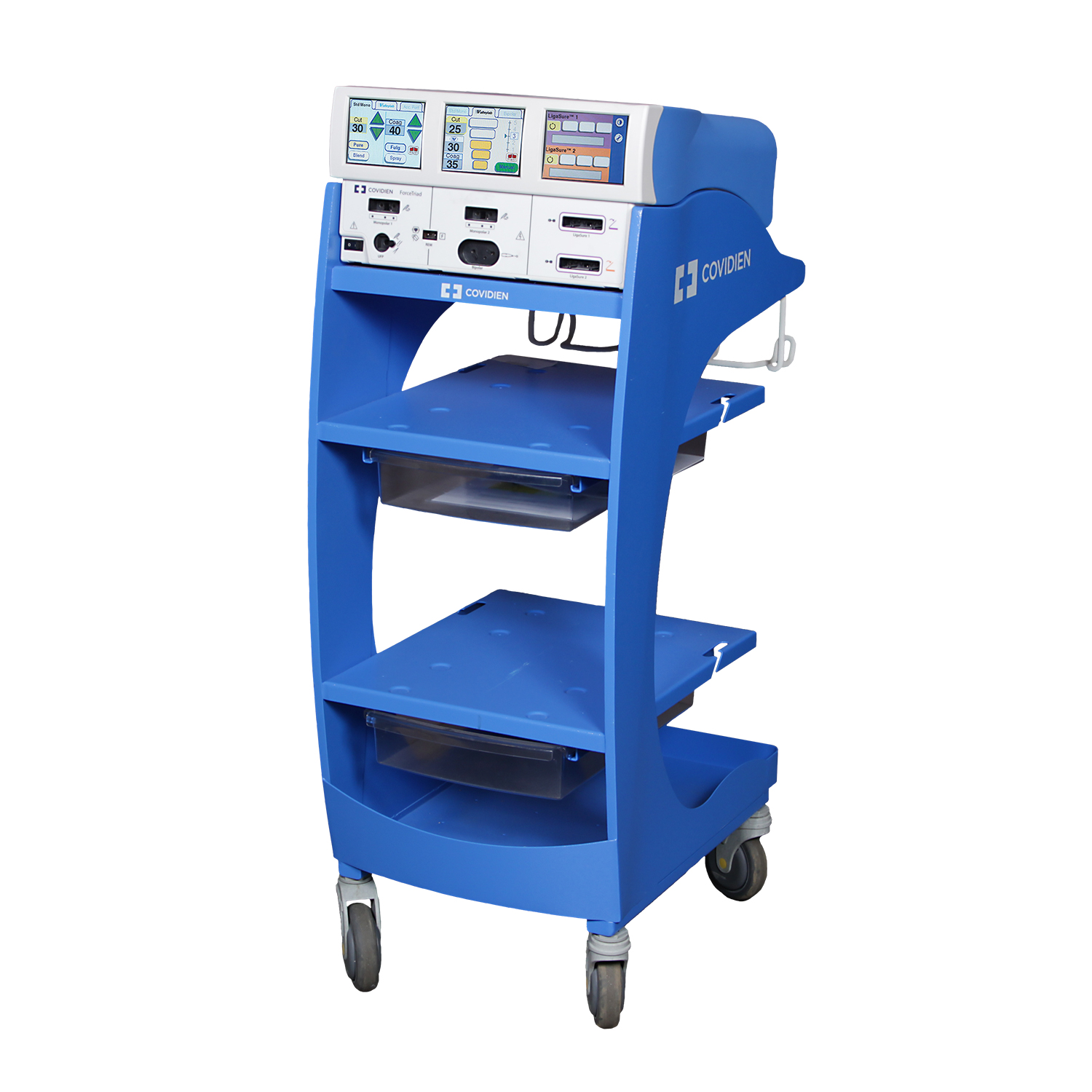

Covidien Valleylab ForceTriad

The Covidien Force Triad energy platform is a full-featured electrosurgical system that provides electrosurgical cutting and coagulation, bipolar functionality, and vessel sealing in a single generator. This Electrosurgical Unit is intended for open and laparoscopicf procedures and includes; TissueFect, ValleyLab, and LigaSure fusion technologies. It features a user-friendly interface with three touchscreens that allow the user to control the system functions.

Features & Specifications

Volume and Frequency
Volume (adjustable): 45 to 65 dBA
Frequency Cut: -660 Hz
Valleylab: 800 Hz.
Coag: 940 Hz.
Bipolar: 940 Hz.
LigaSure: 440 Hz.
Duration: Continuous while the system is activated.
Alarm Tone
Volume (adjustable): >65 dBA.
Frequency: -REM: 660 Hz.
Regrassp: Two tones: High= 985 Hz, Low = 780 Hz.
Seal Complete: 985 Hz.
Error/System Alert: Beep tone = 1400 Hz.
Low Frequency (50/60 Hz) Leakage Current
Enclosure source current, ground open <300 μA.
Source current, patient leads, all outputs
Normal polarity, intact ground: < 10 μA.
Normal polarity, ground open: < 50 μA.
Reverse polarity, ground open: < 50 μA.
Mains voltage on applied part: < 50 μA.
Sink current at high line, all inputs<50 μA
Input Power
100-120 Volt
Maximum VA at nominal line voltage:
Idle: 52 VA
Bipolar: 450 VA
Cut: 924 VA
Coag: 530 VA
Input Mains Voltage, Full Registration Range:
90-132 Vac
Input Mains Voltage, Operating Range:
85-132 Vac
220-240 Volt
Maximum VA at nominal line voltage:
Idle: 52 VA
Bipolar: 450 VA
Cut: 924 VA
Coag: 530 VA
Input Mains Voltage, Full Registration Range:
208-264 Vac
Input Mains Voltage, Operating Range:
170-264 Vac
100-120 Volt
Mains Current (Maximum):
Idle: 0.4 A
Bipolar: 2.0 A
Cut: 7.0 A
Coag: 4.0 VA
LigaSure: 5.0 VA
Mains Line Frequency Range (Nominal):
50 Hz to 60 Hz
Fuses (2): 5mm x 20 mm A8, 250 V:
Fast Blow
Power cord: 3-prong hospital grade:
Connector
220-240 Volt
Mains Current (Maximum):
Idle: 0.2 A
Bipolar: 1.0 A
Cut: 3.5 A
Coag: 2.0 VA
LigaSure: 2.5 VA
Mains Line Frequency Range (Nominal):
50 Hz to 60 Hz
Fuses (2): 5mm x 20mm A8, 250 V:
Fast Blow
Power cord: 3-prong hospital grade:
Connector Warranty:
