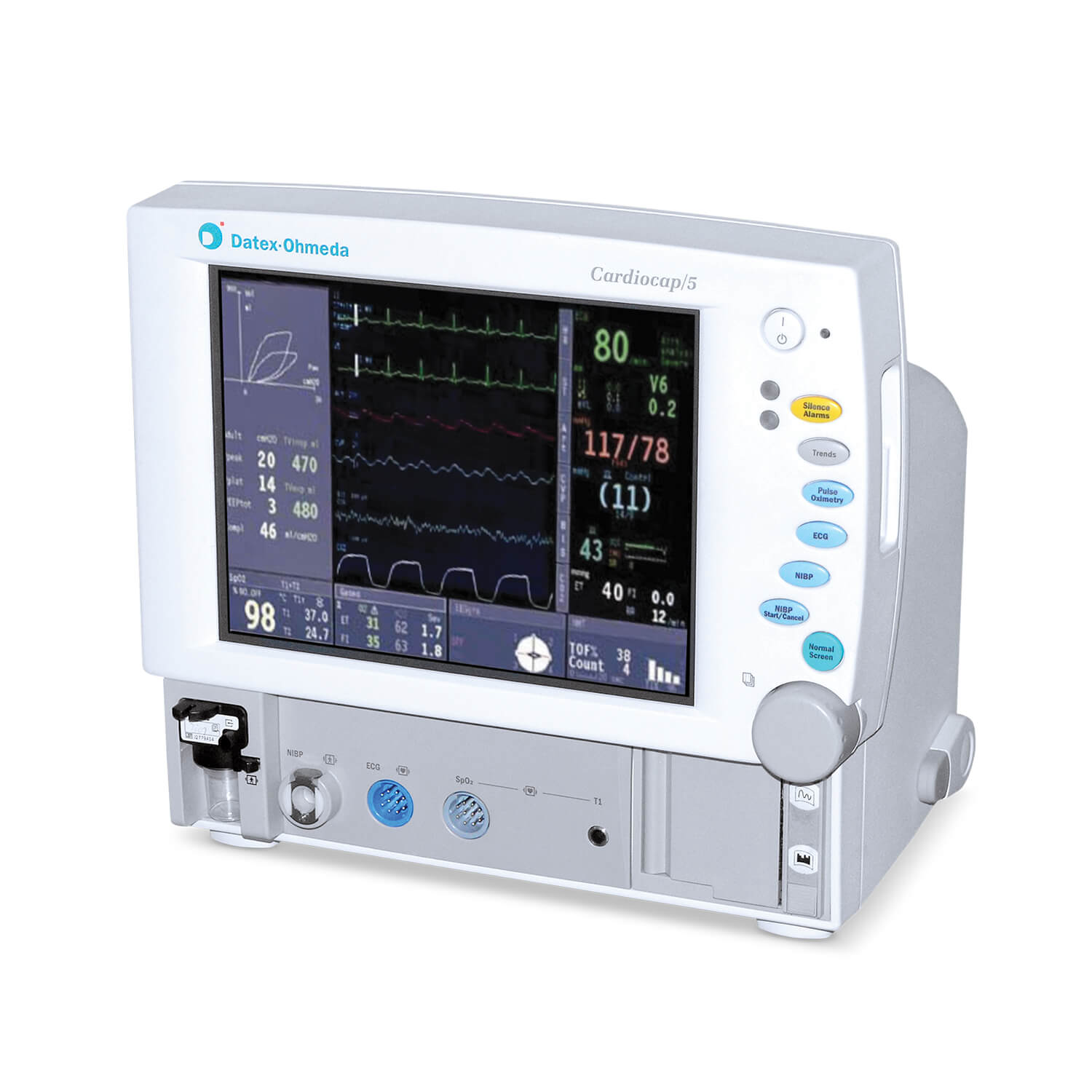

Datex-Ohmeda CardioCap 5

The Datex-Ohmeda Cardiocap/5 Monitor is a compact, all-in-one monitor that offers comprehensive vital signs monitoring capabilities for all anesthesia monitoring locations throughout the perioperative environment. Its compact size fits in places where space is at a premium. The frame integrated mounting piece allows quick and easy mounting on wall rail, roll stand and anesthesia machine mounting arms.

The Cardiocap/5 is designed for use in the operating room, ambulatory surgery unit, induction room and PACU. The Cardiocap/5 offers full vital signs monitoring capabilities from the monitoring of oxygenation and circulation to advanced airway gas analysis and ventilation measurement with Patient Spirometry. The wide range of configurations allows you to choose the set of parameters, which best suit your needs.

The Cardiocap/5 has an outstanding user interface, the trademark of all Datex-Ohmeda monitors, making it easy use, easy to learn and the perfect partner for any anesthesia machine.

Anesthesia Workstation: As an integrated anesthesia monitor, it works together with GE Aespire and Aestiva anesthesia delivery systems to create a high value workstation for the surgery center environment.

Features & Specifications

Dimensions
Height: 11.8” (30 cm)
Width: 13” (33 cm)
Depth: 8.7” (22 cm)
Weight: <24.8 lbs (<11.2 kg)
LCD Display
Type: Active matrix color LCD
Size (Diagonal): 10.4”
Resolution: 640 x 480
Battery
Type: 12V 2.6AH, lead acid
Back-up battery time: at least 15 minutes when fully charged
Charging time: 5 hours (typical)
The green battery charge status LED is On when the battery is fully charged, on the holding voltage. The LED flashes when the battery is being charged.
NIBP
Measurement range:
Adult 25 to 260 mmHg (3.3 to 34.7 kPa)
Child 25 to 195 mmHg (3.3 to 26.0 kPa)
Infant 15 to 145 mmHg (2.0 to 19.3 kPa)
Pulse Rate Range Accepted: 30 to 250 bpm
Typical Measuring Time: Adults 23 seconds, infants 20 seconds
Temperature
Measurement Range: 50 to 113°F (10 to 45°C)
Measurement Accuracy: 77 to 113 °F ± 0.2 °F (25 to 45.0 °C ± 0.1 °C ); 50 to 76.8 °F ± 0.4 °F (10 to 24.9 °C ± 0.2 °C)
Probe Type: Compatible with Datex-Ohmeda temperature probes only
ECG
Waveform display (with 50 Hz power supply frequency):
Monitoring filter: 0.5 to 30 Hz
ST filter: 0.05 to 30Hz
Diagnostic filter: 0.05 to 100 Hz
Waveform display (with 60 Hz power supply frequency):
Monitoring filter: 0.5 to 40 H
ST filter: 0.05 to 40 Hz
Diagnostic filter: 0.05 to 100 Hz
Heart rate
Measurement range: 30 to 250 bpm
Measurement accuracy: ± 5% or ± 5
Pacemaker pulse detection level: 2 to 500 mV
Pacemaker pulse duration: 0.5 to 2 ms
Impedance Respiration
Respiration Range: 4 to 120 respirations/minute
Accuracy: ± 5% or ± 5 bpm
Pulse Oximetry (Standard)
Display Update Time: 5 seconds
Averaging Time: Adjustable
Plethysmographic Waveform Scaling: Adjustable
SpO2
Calibration range: 50 to 100%
Calibrated against functional saturation
Measurement range: 40 to 100%
Measurement accuracy (% SpO2 ±1 SD):
80 to 100% ± 2 digits;
50 to 80% ± 3 digits;
Below 50% unspecified
NOTE: SpO2 measurement accuracyis based on deep hypoxia studies using Datex-Ohmeda FingerSat sensors on volunteered subjects. Arterial blood samples were analyzed by a Radiometer OSM CO-oximeter. Refer to the sensor instructions for specific SpO2 accuracy data.
Pulse rate
Measurement range: 30 to 250 bpm
Measurement accuracy: ± 5% or ± 5 bpm
Default alarm limits
SpO2: high Off, low 90%
Pulse rate: high 160, low 40
NOTE: Limits are adjustable.
Sensor emitter wavelength ranges
Red LED: 660 nm Warranty:
